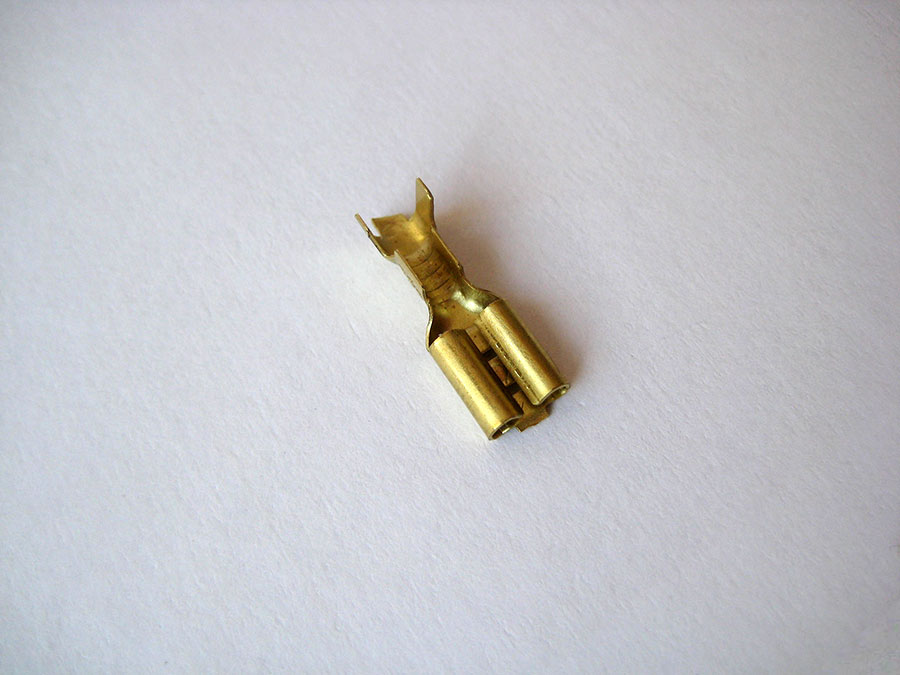

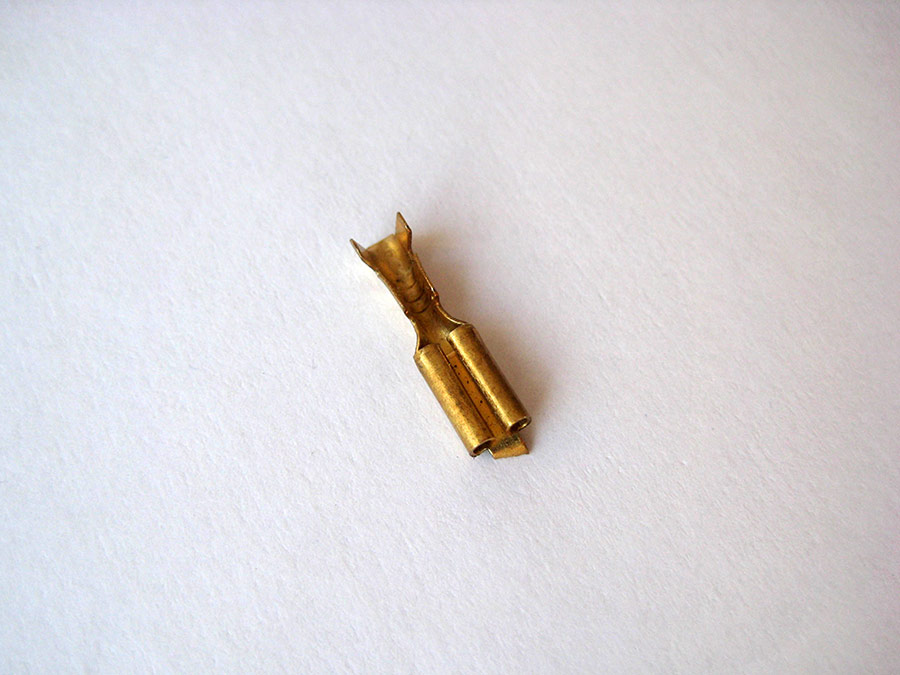

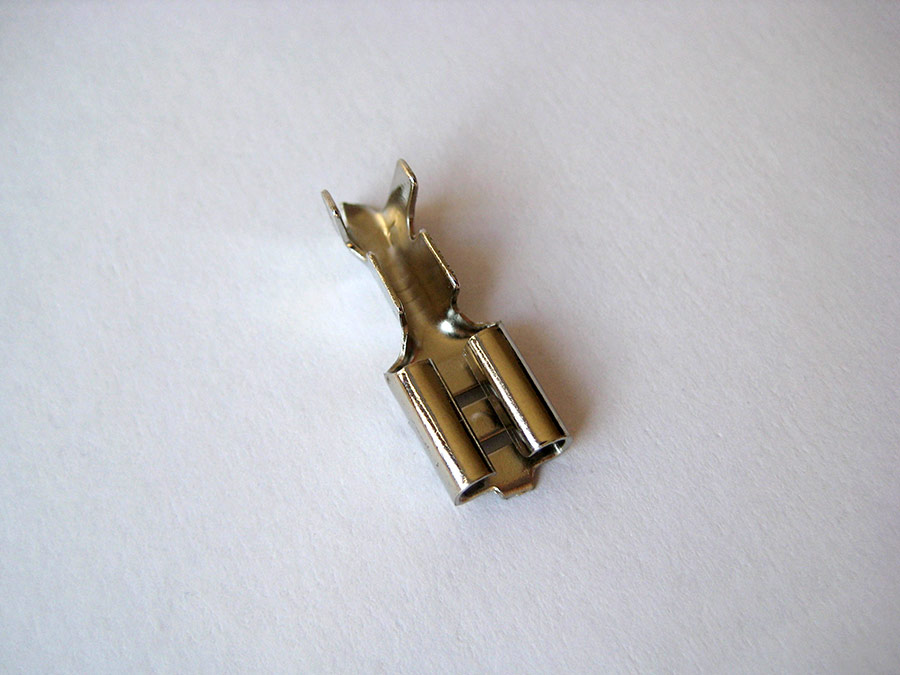

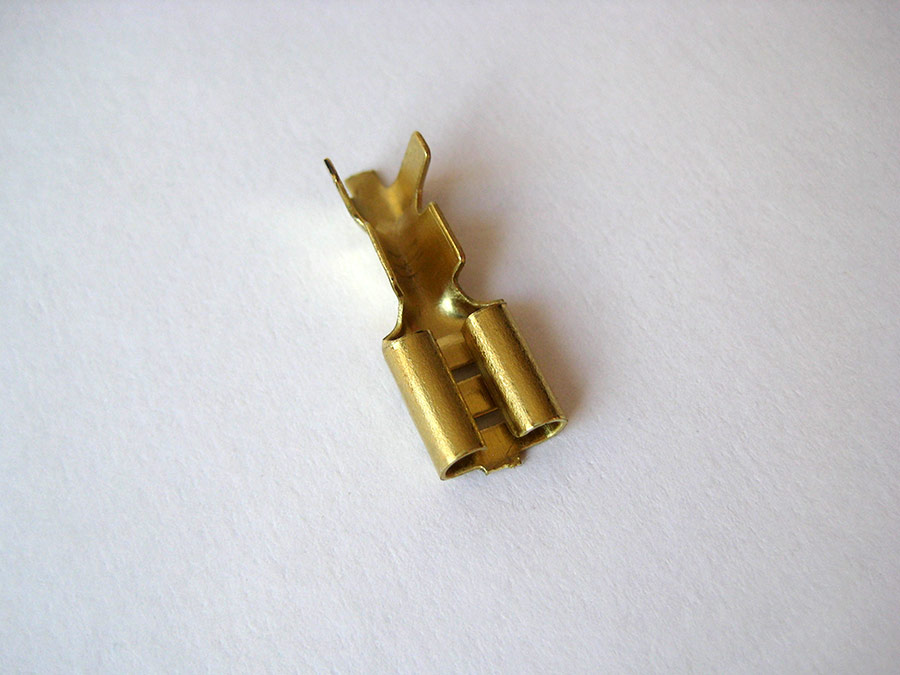

Faston receptacles
Fastons serve for extending or finishing separate conductors used in electrical or automotive industry. Depending on the use, Stancmetal produces different faston types such as faston tabs, flat plugs, splices, socket contacts, cable lugs, ring tongues, spade terminals, etc.
Our company’s fastons conform to German DIN standard, they are made of brass and steel strip with nickel and tin coating. Our fastons enable fast connection between conductor and appropriate device. A quality contact is the one which doesn’t lead to changes while establishing it between fastons after switching on and off for ten times.

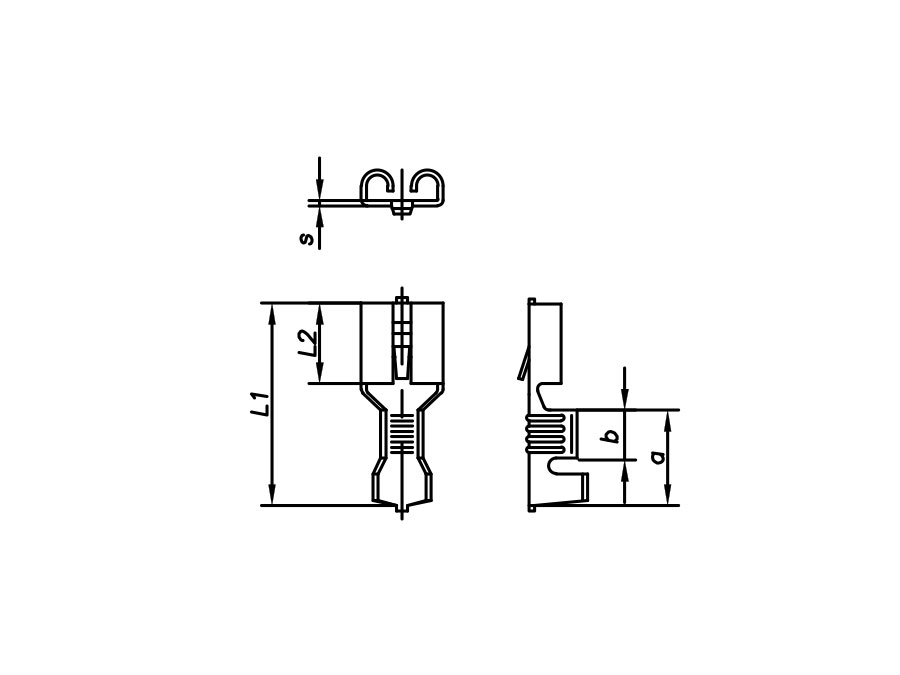

Faston receptacles - DIN 46247
| Faston receptacles DIN 46247 | ||||
|---|---|---|---|---|
| Insulation diameter (mm) | Wire size range (mm²) | Materijal | Designation in the catalog | |
| width | thickness | |||
| 2,8 | 0,5 | 0,25 ÷ 0,5 | CuZn30 | 31010528 |
| CuZn30 tinned | 31030528 | |||
| 4,8 | 0,8 | 0,5 ÷ 1 | CuZn30 | 31011048 |
| CuZn30 tinned | 31031048 | |||
| 6,3 | 0,8 | 0,5 ÷ 1 | CuZn30 | 31011063 |
| CuZn30 tinned | 31031063 | |||
| 1 ÷ 2,5 | CuZn30 | 31012563 | ||
| CuZn30 tinned | 31032563 | |||
| Steel nickelplated | 31022563 | |||
| 2,5 ÷ 6 | CuZn30 | 31016063 | ||
| CuZn30 tinned | 31036063 | |||
| Steel nickelplated | 31026063 | |||

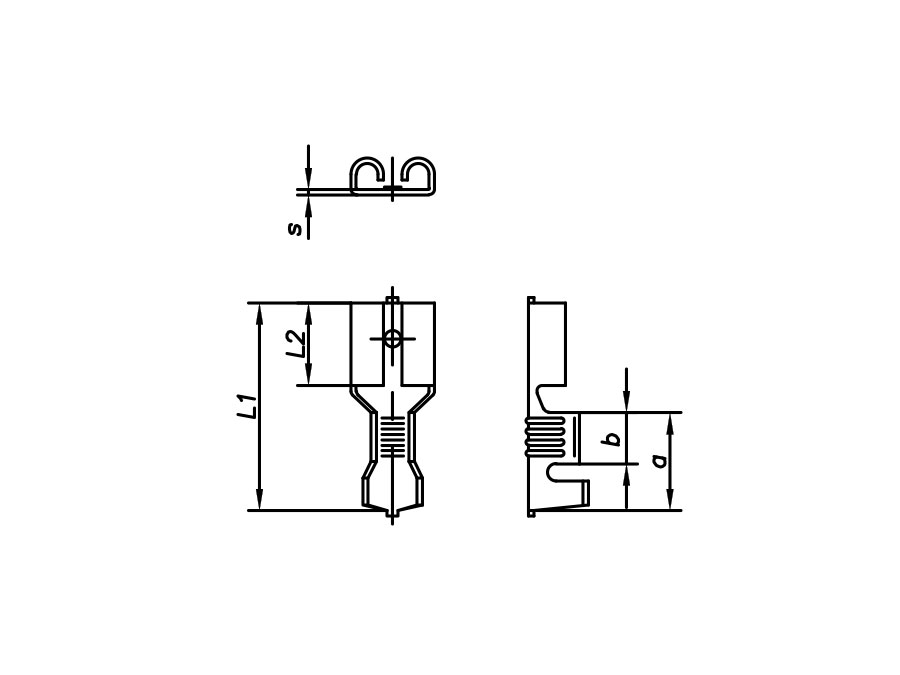

Faston receptacles - DIN 46340
| Faston receptacles DIN 46340 | ||||
|---|---|---|---|---|
| Insulation diameter (mm) | Wire size range (mm²) | Materijal | Designation in the catalog | |
| width | thickness | |||
| 2,8 | 0,5 | 0,25 ÷ 0,5 | CuZn30 | 32010528 |
| CuZn30 tinned | 32030528 | |||
| 4,8 | 0,8 | 0,5 ÷ 1 | CuZn30 | 32011048 |
| CuZn30 tinned | 32031048 | |||
| 6,3 | 0,8 | 0,5 ÷ 1 | CuZn30 | 32011063 |
| CuZn30 tinned | 32031063 | |||
| 1 ÷ 2,5 | CuZn30 | 32012563 | ||
| CuZn30 tinned | 32032563 | |||
