Ring tongues
DIN 46225
| Ring tongues DIN 46225 | |||||
|---|---|---|---|---|---|

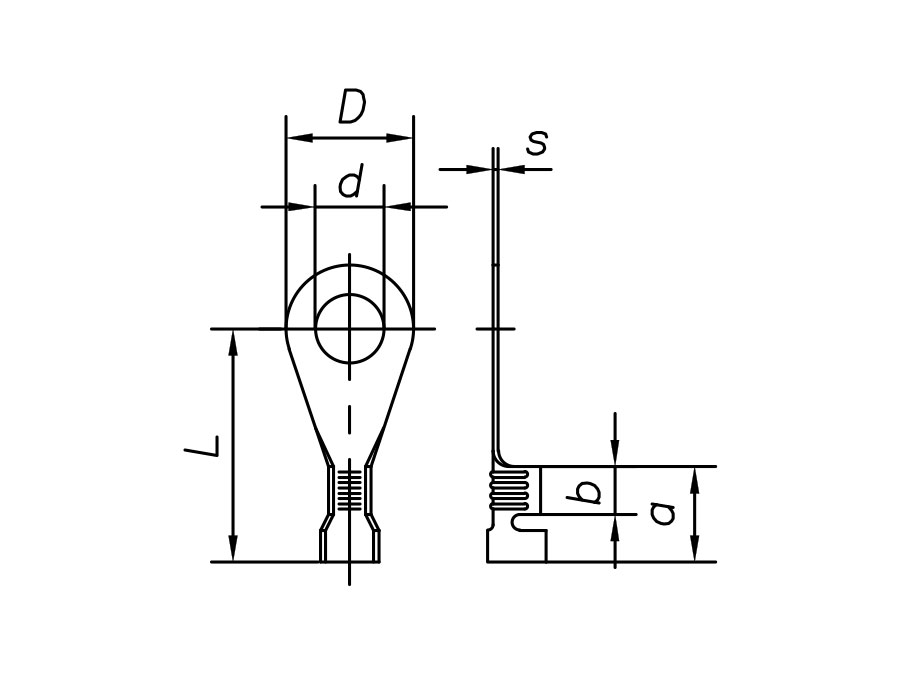

| Wire size range (mm²) | d | D | Materijal | Designation in the catalog | |
| 0,5 ÷ 1 | 4,3 | 8 | CuZn30 | 40011043 | |
| CuZn30 tinned | 40031043 | ||||
| 5,3 | 9,5 | CuZn30 | 40011053 | ||
| CuZn30 tinned | 40031053 | ||||
| 1 ÷ 2,5 | 3,2 | 8 | CuZn30 | 40012532 | |
| CuZn30 tinned | 40032532 | ||||
| 4,3 | 8 | CuZn30 | 40012543 | ||
| CuZn30 tinned | 40032543 | ||||
| 5,3 | 9,5 | CuZn30 | 40012553 | ||
| CuZn30 tinned | 40032553 | ||||
| 6,5 | 12 | CuZn30 | 40012565 | ||
| CuZn30 tinned | 40032565 | ||||
| 8,4 | 14 | CuZn30 | 40012584 | ||
| CuZn30 tinned | 40032584 | ||||
